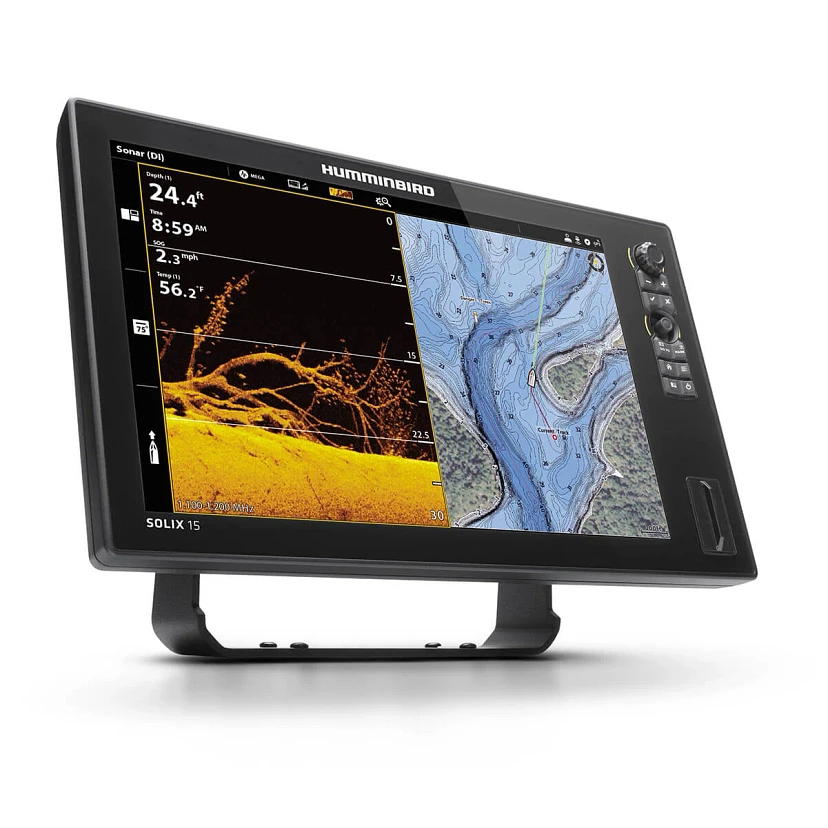

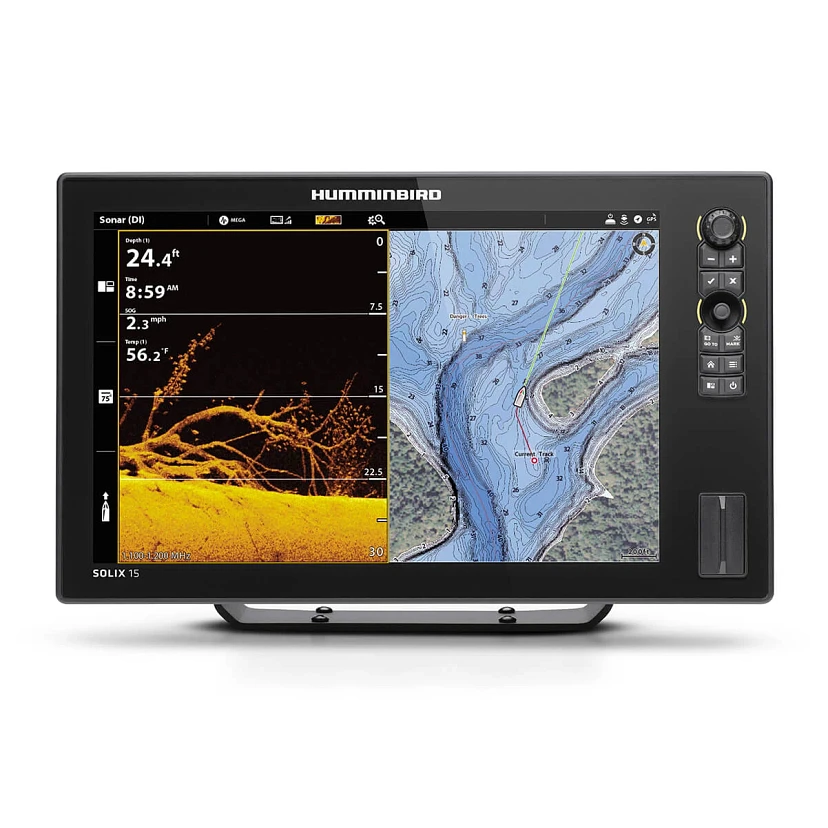

Take advantage of the cutting-edge technologies in the SOLIX 15 CHIRP MSI+ G3, like MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and AutoChart Live. SOLIX 15 CHIRP MSI+ G3 has the ultra-clear Cross Touch® display that measures a generous 15.4", allowing for customizable views and settings to easily find what you need through the sidebar menu. Additionally, connect with other devices using the built-in Wi-Fi, NMEA 2000®, Bluetooth®, and Ethernet capabilities for a seamless experience with the One-Boat Network™ from Humminbird, Minn Kota, and Cannon.

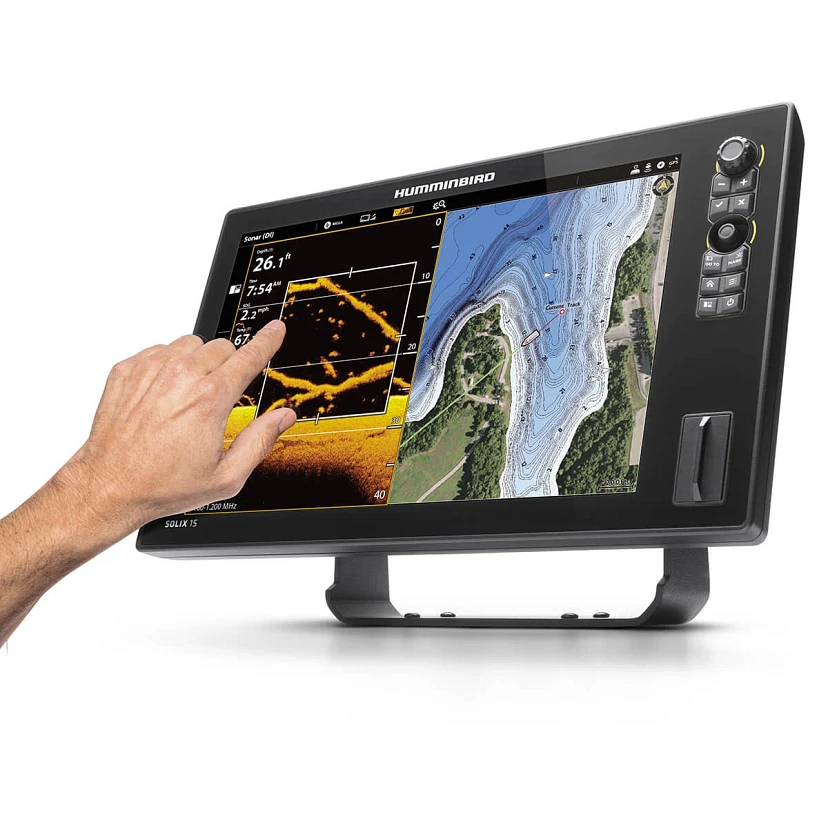

Customize your fishing experience with SOLIX 15 CHIRP MEGA SI + G3's user-friendly touchscreen and keypad interface. Easily access advanced technologies with customizable settings and view combinations.
The SOLIX G3 has enhanced processing power and a quick interface, making it perfect for any task. Quickly and easily install accessory 2D Airmar transducers with transducer ID. Its MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar capabilities, with views up to 250', ensure precise target separation and fish identification.
Professional-grade GPS and enhanced basemap for detailed underwater terrain and navigation. Includes buoys, hazards, marinas, contours, depth markers, and premium chart options from Humminbird's LakeMaster® and CoastMaster™ products and is compatible with Navionics®.
Make real-time fishing maps with SOLIX 15's patented AutoChart Live, 8-hour recording capability, and One-Boat Network compatibility.
Upgrade your fishing system with high-speed Ethernet to easily connect multiple fish finders and add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar. Take control from your Humminbird screen with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Enjoy additional features such as wireless software updates from the Humminbird FishSmart App and smartphone notifications displayed on your Humminbird screen.
NMEA 2000 networking included: Connect to control head for more info on boat performance, weather, and water conditions. Compatible with CZone® Contact 6, Contact 6 Plus & digital switching devices. Includes control head, screen cover, transom mount transducer, hardware, & power cable. Comes with a 2-year limited warranty.
Model | SOLIX 15 CHIRP MEGA SI+ G3 |
Product Code | 411570-1 |
Series | SOLIX |
UPC | 0082324054877 |
Display Size - Diagonal | 15.4 in |
Display Pixel Matrix | 1280H x 800V |
Transducer Included | XM 14 HW MSI T |
Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network |
Features | Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
Memory Card Slot | Dual SD |
Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
Sonar-Coverage | 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB |
Sonar-Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
Depth-Sonar | 3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer) |
CHIRP - Imaging Frequencies Supported | MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz) |
Depth-Down Imaging | 200 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz) |
Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA) |
Interface | Touch Screen |
Power Draw | 2.8 Amps |
Power Input | 10.8-20 VDC |
Power Output Peak-to-Peak | 8000 Watts |
Power Output RMS | 1000 Watts |
Screen Snap Shot | Included |
Sonar Recording | Included |

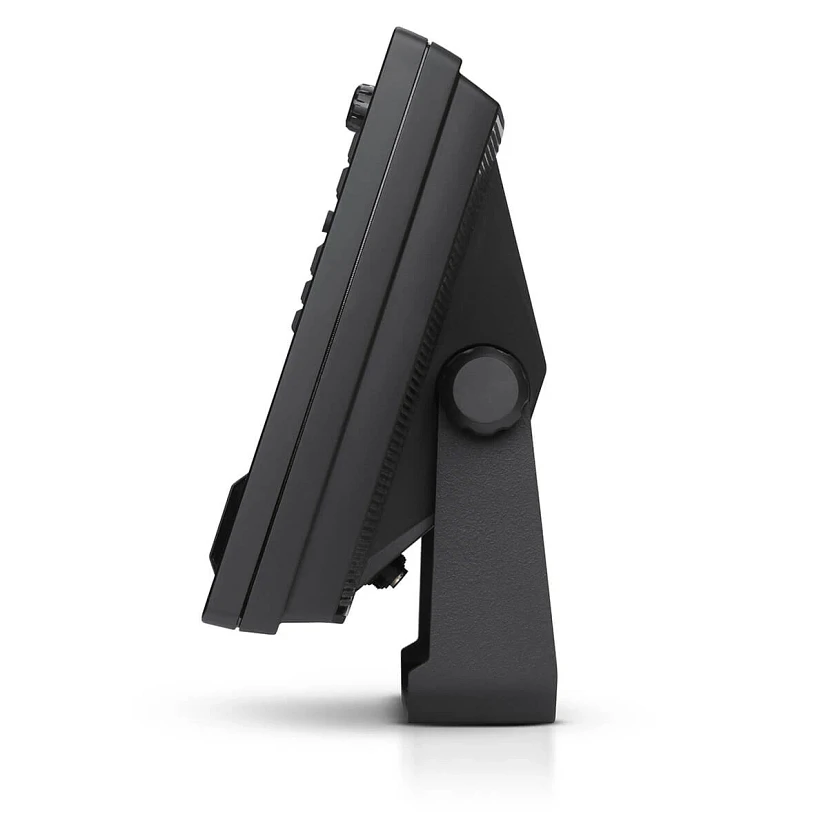

Mount-Standard | Gimbal |
Mount-Standard Size | 16.53 in W x 10.46 in H x 4.83 in D |
Mount-Optional | In-Dash Mounting Kit |
Mount-Optional Size | 16.53 in W x 10.05 in H x 1.2 in D |
Transducer Mount Location | Transom |
GPS Chartplotting | Included |
GPS Receiver | Internal |
GPS Trackplotting | Included |
Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 |
360 Imaging Compatibility | Yes |
MEGA Live Compatibility | Yes |
Humminbird Basemap | Included |
LakeMaster Compatibility | Yes |
CoastMaster Compatibility | Yes |
Navionics Gold/HotMaps Compatibility | Yes |
Navionics Platinum+ Compatibility | Yes |
Platinum Compatibility | Yes |
Minn Kota i-Pilot Link Compatibility | Yes |
Minn Kota Talon Shallow Water Anchor Compatibility | Yes |
Radar Compatibility | Yes |
5-Port Ethernet Switch Compatibility | Yes |
AIS Compatibility | Optional |
Autopilot Compatibility | Yes |
Heading Sensor GPS Compatibility | Yes |
NMEA2000 | Included |
Target Separation | 2.5 in |
Upgradable Software | Yes |
View Preset Keys | No |
X-Press Menu System | No |
Custom Digital Readout | Yes |
Custom View Selections | Yes |
Display Colors Grayscale | 16-Bit |
Display Type | Color TFT |
Speed | Included |
Temperature | Built In |
Temperature Alarm | Yes |
Temperature Graph | Yes |
HDMI Compatible | No |
Warranty | Two-Year Warranty |
