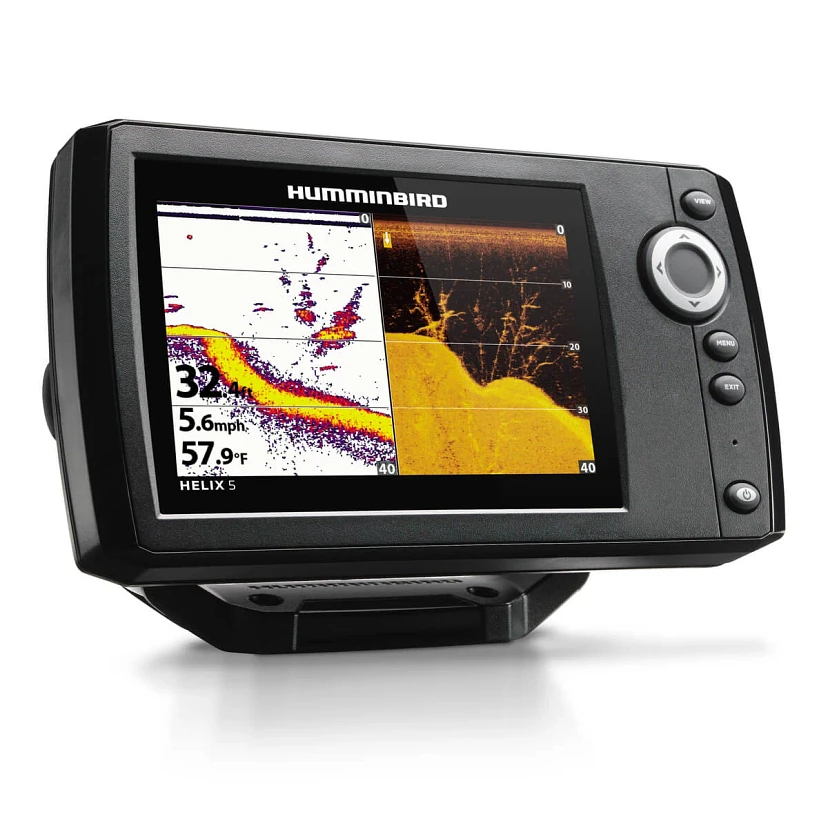

The HELIX 5 Series meets high expectations with its impressive and unyielding 5" widescreen display. This particular model, the HELIX 5 DI G2, boasts Down Imaging, DualBeam PLUS, and SwitchFire capabilities.
With HELIX 5 DI G2 gain a deep understanding of underwater activity with Down Imaging. Clear images of timber, brush, bridge pilings, rocks, and other structures will be displayed as you navigate the water. SwitchFire Sonar allows you to control your sonar display and adjust for various factors such as water depth, temperature, and turbulence with ease. Switch between modes effortlessly to observe lure presentations.

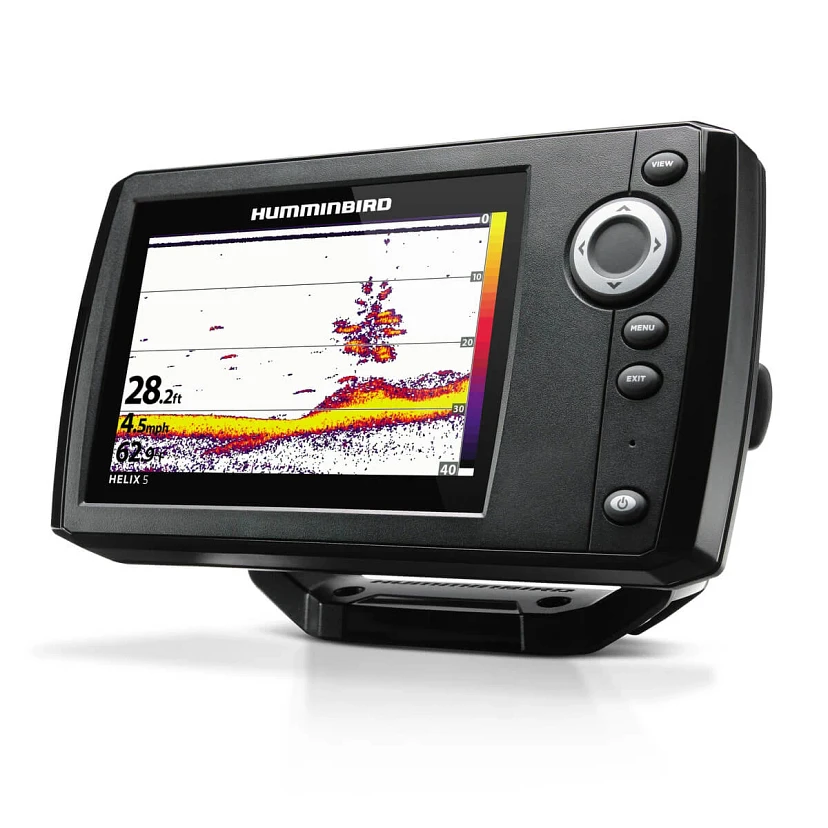

Maximize your underwater view with Dual Beam PLUS Sonar - combining two beams to provide detailed images and wide coverage. Choose the narrow beam for precise fish and structure detection, or switch to the wide beam for a larger search area. View the beams independently, side-by-side, or combined to see the full picture. Your coverage area will match your depth, backed by a 1-Year Limited Warranty.
Model
HELIX 5 DI G2
Product Code
410200-1
Series
HELIX
UPC
0082324049019
Display Size - Diagonal
5 in
Display Pixel Matrix
800H x 480V
Transducer Included
XNT 9 DI T
Compatible With
AIS, AutoPilot
Features
Down Imaging
Memory Card Slot
None
Sonar-Standard
Down Imaging, DualBeam PLUS
Sonar-Coverage
16°, 28°, 45° & 75° @ -10dB
Sonar-Frequencies Supported
200/455/800 kHz
Depth-Sonar
600 ft (standard transducer)
Depth-Down Imaging
350 ft
Interface
Keypad Control
Power Draw
615 mA
Power Input
10.8-20 VDC
Power Output Peak-to-Peak
4000 Watts
Power Output RMS
500 Watts
Screen Snap Shot
Not Supported
Sonar Recording
Not Supported

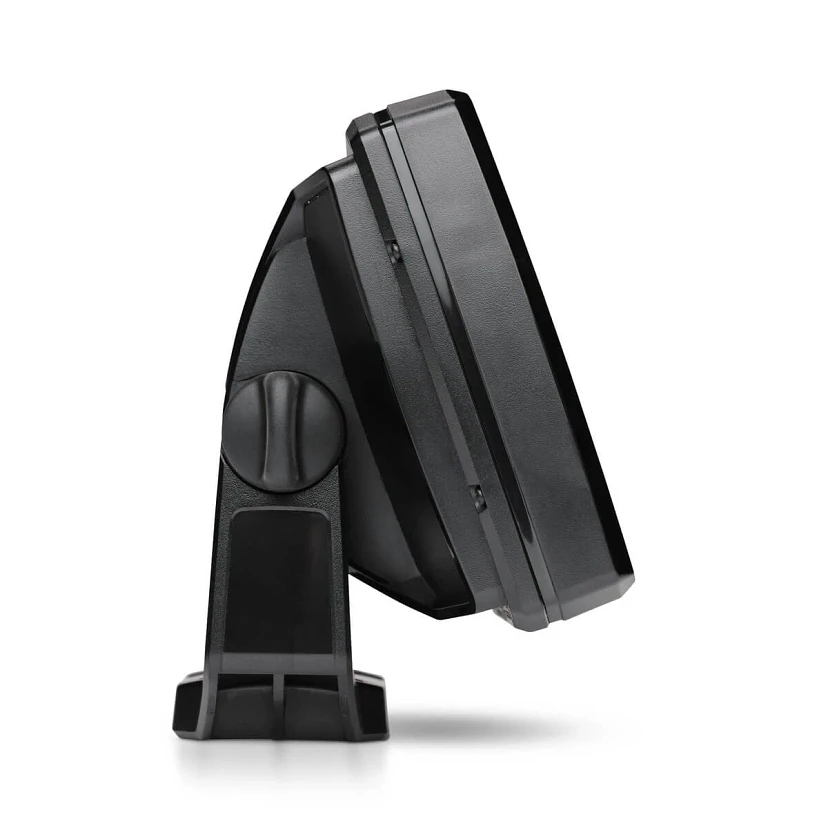

Mount-Standard
Gimbal
Mount-Standard Size
7.55 in W x 4.64 in H x 3.3 in D
Mount-Optional
In-Dash Mounting Kit
Mount-Optional Size
7.55 in W x 4.28 in H x 1.13 in D
Transducer Mount Location
Transom
GPS Chartplotting
Not Supported
GPS Receiver
Optional
GPS Trackplotting
Not Supported
360 Imaging Compatibility
No
MEGA Live Compatibility
No
Humminbird Basemap
Not Supported
LakeMaster Compatibility
No
CoastMaster Compatibility
No
Navionics Gold/HotMaps Compatibility
No
Navionics Platinum+ Compatibility
No
Platinum Compatibility
No
Minn Kota i-Pilot Link Compatibility
No
Minn Kota Talon Shallow Water Anchor Compatibility
