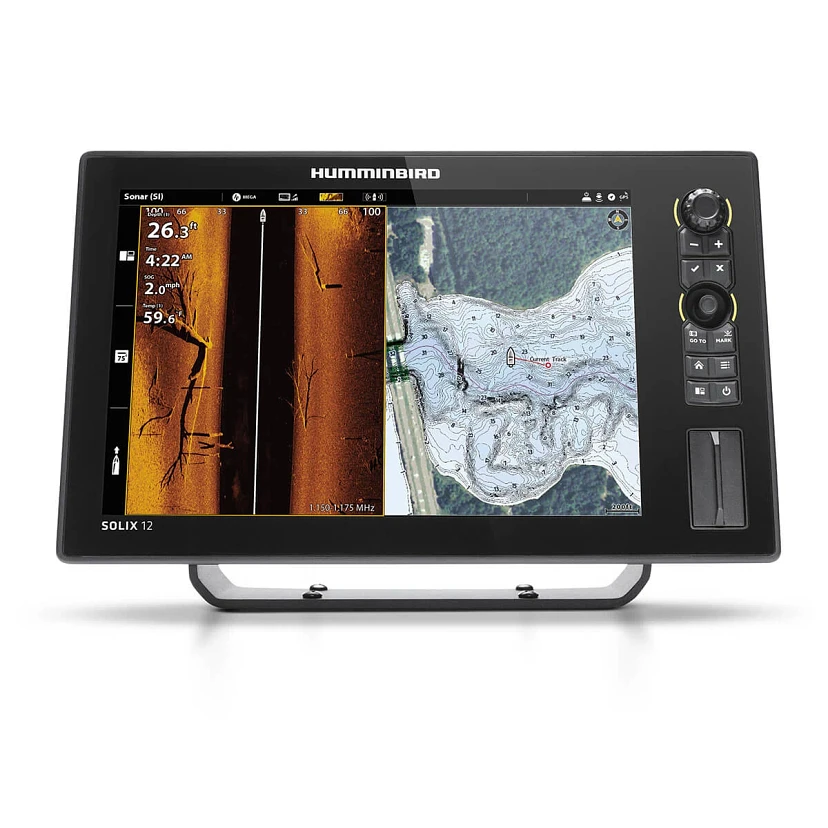

The advanced SOLIX 12 CHIRP MEGA SI + G3 features state-of-the-art MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and AutoChart Live, all on a crystal-clear Cross Touch® display. Easily navigate through the customizable views and settings on the expansive SOLIX 12 CHIRP MEGA SI + G3 12.1" touchscreen, and access multiple technologies at once through the convenient sidebar menu. Connect to the One-Boat Network™ family of products from Humminbird, Minn Kota, and Cannon with built-in Wi-Fi, NMEA 2000®, Bluetooth®, and Ethernet capabilities.
The Cross Touch® Interface gives you control of your fish finder through either the touchscreen or keypad. You can easily navigate menus and access technologies quickly and intuitively. The sidebar menu and customizable settings make for a personalized fishing experience.
Improved speed and processing capabilities with NEW Dual Core Processor. - Includes Airmar® Transducer ID for easy setup of 2D Airmar transducers on SOLIX G3.
Harness the power of Humminbird sonar: With MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP, you'll have unparalleled views up to 250' on either side of your boat, superior target separation, and a detailed base map for confident fishing and navigation.
Premium chart options are available from Humminbird, including their LakeMaster® and CoastMaster™ products, as well as Navionics® charts. Use AutoChart Live to create real-time maps and access LakeMaster® features with eight hours of recording time and compatibility with AutoChart Zero Line SD cards.
Maximize your on-water experience with Humminbird's One-Boat Network, seamlessly integrating multiple devices for advanced fishing capabilities. Connect fish finders, i-Pilot Link, and CHIRP Radar using high-speed Ethernet technology.
Streamline control with Bluetooth + wireless communication to compatible Talon and Raptor shallow water anchors, plus Cannon Optimum downriggers. Get real-time updates with wireless software from the Humminbird FishSmart App and smartphone notifications. Extend your insights with NMEA 2000 networking for boat performance, weather, and water conditions.
Works with CZone® digital switching devices - Includes control head, screen cover, transducer, and mounting hardware - Optional RAM mount not included - 2-Year Limited Warranty included.
Model | SOLIX 12 CHIRP MEGA SI+ G3 |
Product Code | 411550-1 |
Series | SOLIX |
UPC | 0082324054891 |
Display Size - Diagonal | 12.1 in |
Display Pixel Matrix | 1280H x 800V |
Transducer Included | XM 14 HW MSI T |
Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network |
Features | Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
Memory Card Slot | Dual SD |
Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
Sonar-Coverage | 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB |
Sonar-Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
Depth-Sonar | 3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer) |
CHIRP - Imaging Frequencies Supported | MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz) |
Depth-Down Imaging | 200 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz) |
Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA) |
Interface | Touch Screen |
Power Draw | 2.7 Amps |
Power Input | 10.8-20 VDC |
Power Output Peak-to-Peak | 8000 Watts |
Power Output RMS | 1000 Watts |
Screen Snap Shot | Included |
Sonar Recording | Included |
Mount-Standard | Gimbal |
Mount-Standard Size | 13.82 in W x 9.55 in H x 4.79 in D |
Mount-Optional | In-Dash Mounting Kit |
Mount-Optional Size | 13.82 in W x 8.21 in H x 1.2 in D |
Transducer Mount Location | Transom |
GPS Chartplotting | Included |
GPS Receiver | Internal |
GPS Trackplotting | Included |
Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 |
360 Imaging Compatibility | Yes |
MEGA Live Compatibility | Yes |
Humminbird Basemap | Included |
LakeMaster Compatibility | Yes |
CoastMaster Compatibility | Yes |
Navionics Gold/HotMaps Compatibility | Yes |
Navionics Platinum+ Compatibility | Yes |
Platinum Compatibility | Yes |
Minn Kota i-Pilot Link Compatibility | Yes |
Minn Kota Talon Shallow Water Anchor Compatibility | Yes |
Radar Compatibility | Yes |
5-Port Ethernet Switch Compatibility | Yes |
AIS Compatibility | Optional |
Autopilot Compatibility | Yes |
Heading Sensor GPS Compatibility | Yes |
NMEA2000 | Included |
Target Separation | 2.5 in |
Upgradable Software | Yes |
View Preset Keys | No |
X-Press Menu System | No |
Custom Digital Readout | Yes |
Custom View Selections | Yes |
Display Colors Grayscale | 16-Bit |
Display Type | Color TFT |
Speed | Included |
Temperature | Built In |
Temperature Alarm | Yes |
Temperature Graph | Yes |
HDMI Compatible | No |
Warranty | Two-Year Warranty |
