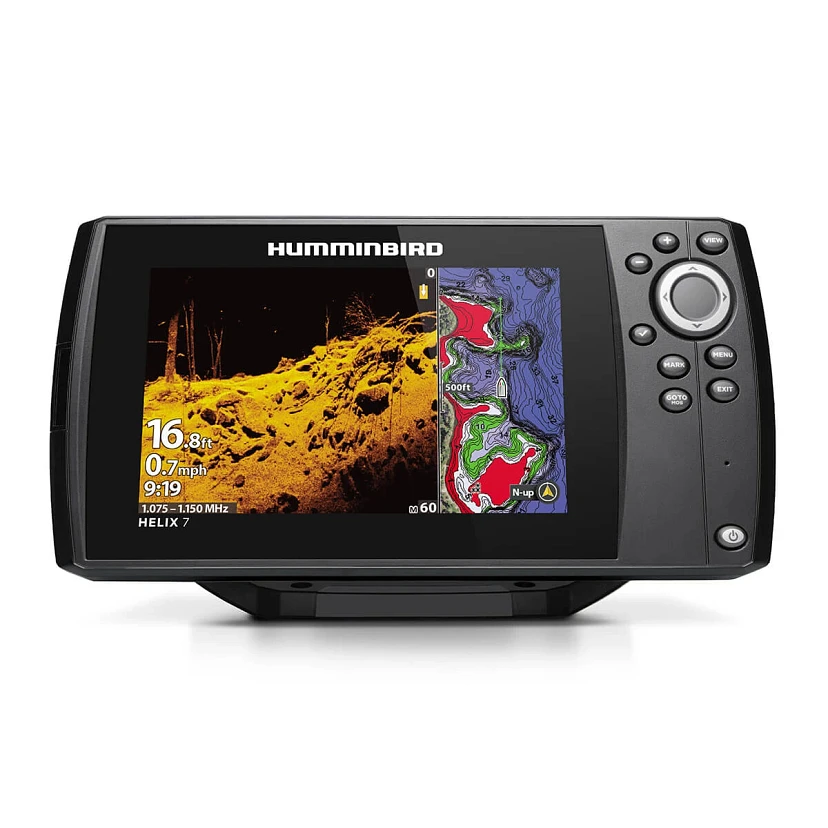

HELIX 7 CHIRP MEGA DI GPS G4
The HELIX 7 CHIRP MEGA DI GPS G4 fish finder provides MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, built-in Internal GPS, and Humminbird Basemap. HELIX 7 CHIRP MEGA DI GPS...
SKU:
411610-1
- €695.00
- €695.00
- Unit price
- per
The HELIX 7 CHIRP MEGA DI GPS G4 fish finder provides MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, built-in Internal GPS, and Humminbird Basemap. HELIX 7 CHIRP MEGA DI GPS G4 advanced 7" display offers numerous split-screen viewing options for an accurate and clear view of underwater activity.
Master your HELIX with one touch. Use the user-friendly menu and softkey controls in any conditions for reliable fish finder operation. Get unparalleled clarity up to 125 feet below your boat with MEGA Down Imaging, revealing up to 3X more detail than standard sonar.
Improved sonar with detailed fish arches and clear bottom view. Wide and Narrow modes available. Built-in GPS and Humminbird Basemap show underwater terrain, points of interest, and more.
Enhance your angling experience with the most comprehensive selection of premium chart options from Humminbird. Choose from LakeMaster® and CoastMaster™ products or compatible Navionics® charts to get a complete view of the underwater world. Create real-time maps of your fishing spots with patented LakeMaster® features and AutoChart Zero Line SD cards. Comes with a control head, transducer, power cable, and mounting accessories, and a 1-year limited warranty.
| Model | HELIX 7 CHIRP MEGA DI GPS G4 |
| Product Code | 411610-1 |
| Series | HELIX |
| UPC | 0082324056147 |
| Display Size - Diagonal | 7 in |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW MDI 75 T |
| Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot |
| Features | Down Imaging, Built In GPS, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Down Imaging |
| Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth-Sonar | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | 455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz) |
| Depth-Down Imaging | 350 ft (455 kHz), 125 ft (MEGA) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz) |
| Interface | Keypad Control |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 10.54 in W x 5.8 in H x 3.68 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 10.54 in W x 5.44 in H x 1.13 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,750, 47, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 2.5 in |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | No |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |
