Motorized Scout/Perspective Angle Adjuster – Maximize Your Live Sonar Performance
Want to get the most out of your live sonar’s scout/perspective view – in both shallow and deep water? This is your solution: a motorized, remote-controlled angle adjuster that combines precision, ease of use, and durability.
Key Features:
-
Adjustable Angle 0–60° (expandable to 0–90° with optional add-on): One transducer for all angles – perspective, scout, and landscape.
-
Ultra-low power consumption: The motor only uses power when adjusting the angle.
-
Minimal water resistance: The motor sits above the waterline, and the strong stainless-steel rod resists wobble at high speeds without adding drag while scanning.
-
High-performance motor: Tested to function reliably at scanning speeds up to 13 km/h (8 mph).
-
Quick and easy installation: Over a year of testing to ensure durability and the best components available. Backed by a full 2-year warranty.
-
All essential mounting hardware included.

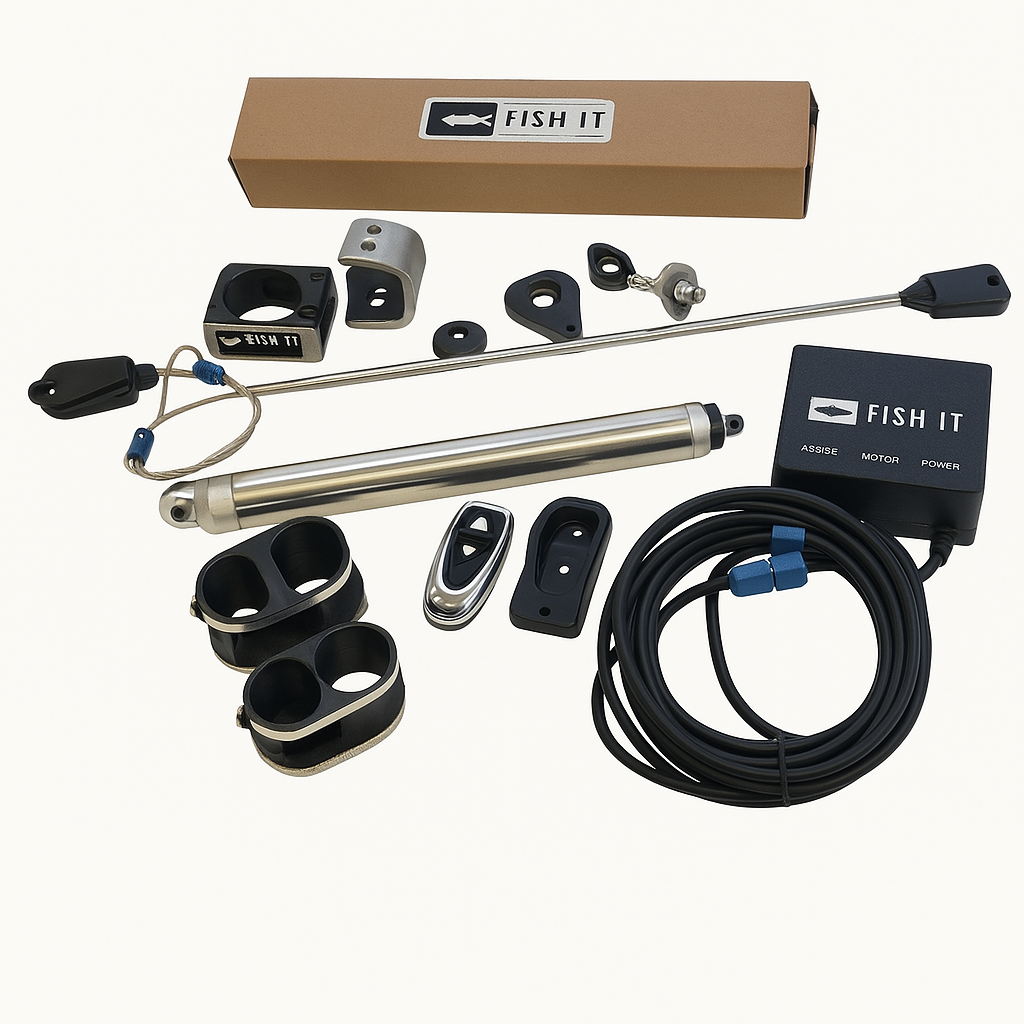

Package Includes:
-
Fish It Mount – Scout/Perspective mount (incl. all HST mounting hardware)
-
Motor and mounting brackets
-
50 cm stainless steel rod (can be shortened if needed)
-
Remote control with neck strap and dashboard dock (3M adhesive included)
-
All necessary bolts and brackets
-
Compatible with Fish It Mount Combo setups
Compatibility:
Works with all live sonar transducers that support scout/perspective view:
-
Lowrance ActiveTarget 1 & 2
-
Garmin LVS64, LVS34, LVS32 (LVS32 requires an additional adapter)
-
Humminbird Mega Live 1 & 2
Choose the correct version based on the outer diameter of your transducer pole or trolling motor shaft. If you change pole sizes later, we offer new adapters at an affordable price.
Installation & Use:
-
The control box connects to a 12V power source
-

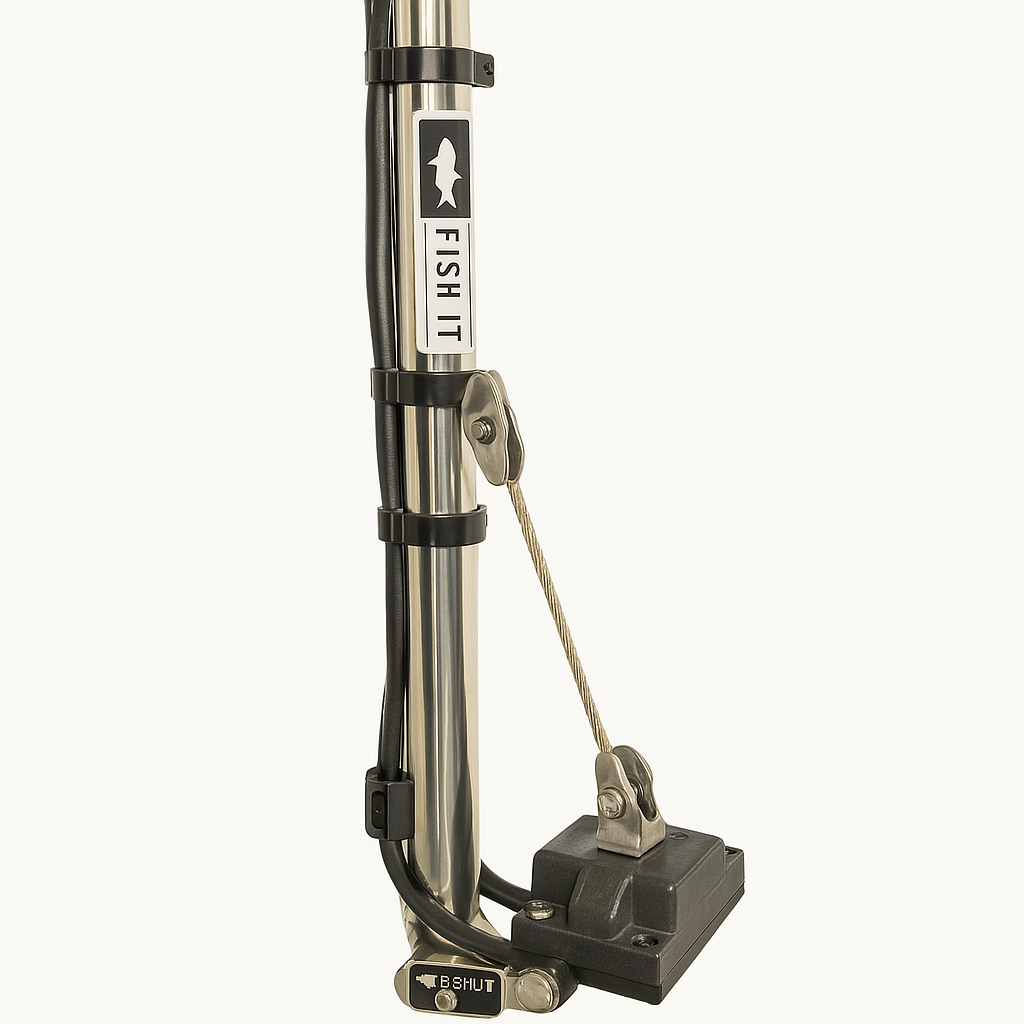

Mount the motor to the pole and attach the pin to the transducer
-
Motor and transducer must be installed on the same continuous pole (minimum 40 cm visible length required)
Optional Accessories:
-
Toggle Switch: For permanent dashboard installation. Works in parallel with the remote control – use either one as needed.
• • Rotating Handle for Mount Pole: Includes a spot for the remote and a direction indicator (M6 threaded rod). Ergonomic grip for comfortable control – no more sore wrists, even on long fishing days!
