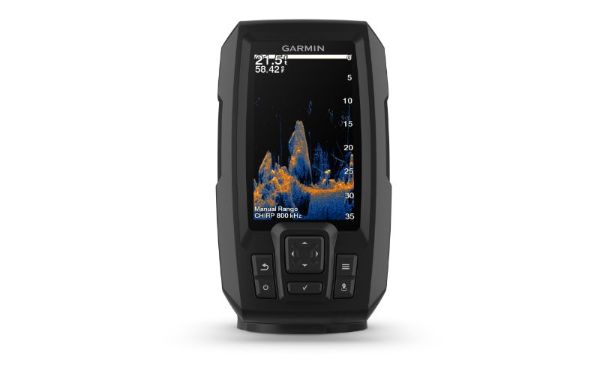

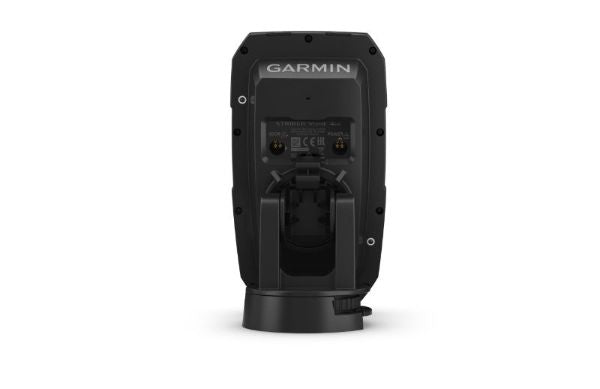

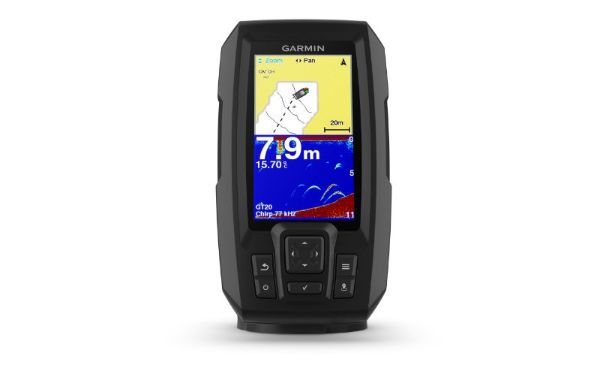

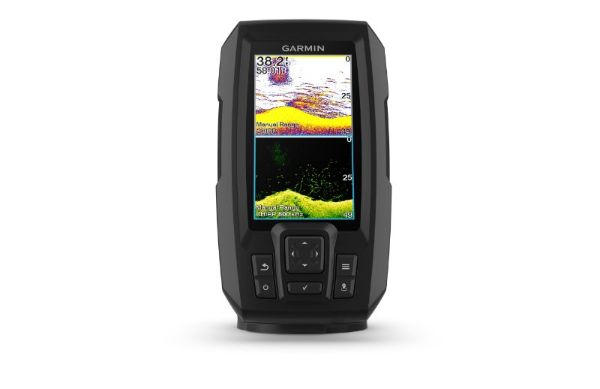

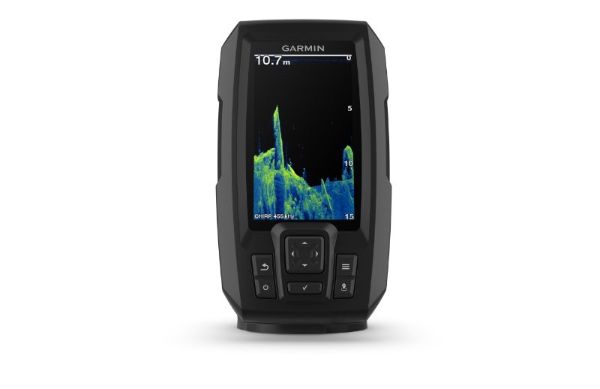

Garmin STRIKER Vivid 4cv with GT20-TM Transducer

by Garmin
Original price €199.99 - Original price €199.99
Original price
€199.99
€199.99 - €199.99
Current price €199.99
NOTIFY ME WHEN IN STOCK
THE CHOICE IS YOURS

See fish and structure in maximum detail when you pick your display colour, your location and your sonar for your day on the water with the STRIKER Vivid 4cv fishfinder with transducer


The sonar colour you pick says a lot about your fishing style. Good thing there are 7 new vivid options. What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars. Never lose a hot spot again. Use waypoint marking to find your way back. What’s under the water’s surface looks pretty good as 1-foot contours, just saying.



A new way to see what’s under the water.



CLEAR, COLOURFUL SONAR

Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 4-inch fishfinder.

BUILT-IN SONAR

Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

alt text

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 4cv fishfinder, you can store up to 2 million acres of maps with 1-foot contours.

alt text

INCLUDED HARDWARE

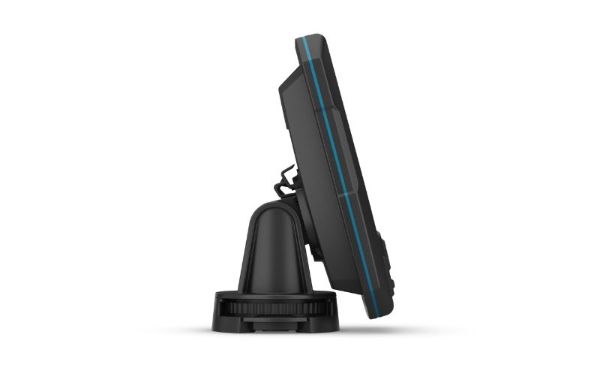

The STRIKER Vivid 4cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

General

DIMENSION 3.9'' x 6.9'' x 1.8'' (9.8 x 17.4 x 4.5 cm)
INPUT Keyed
DISPLAY SIZE 2.1" x 3.7" (5.4 x 9.5 cm); 4.3" diag, (10.9 cm)
DISPLAY RESOLUTION 272 X 480 pixels
DISPLAY TYPE QSVGA
WEIGHT 0.7 lbs (0.3 kg)
WATER RATING IPX7
MOUNTING OPTIONS flush, tilt/swivel
Maps & memory
WAYPOINTS/FAVOURITES/LOCATIONS 5000
TRACK POINTS 50,000
TRACKS 50
NAVIGATION ROUTES 100
Sensors
HAS BUILT-IN RECEIVER YES
RECEIVER Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz
GPS YES
SUPPORTS WAAS YES
Optional Map Support
GARMIN QUICKDRAW CONTOURS YES
Sonar features & specifications
DISPLAYS SONAR YES
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) Built-in
CLEARVÜ YES
FREQUENCY Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) YES
WATER TEMPERATURE LOG YES
Connections
4-PIN TRANSDUCER PORTS 1
Electrical Features
POWER INPUT 12 to 20 Vdc
TYPICAL CURRENT DRAW 0.40 A
MAX CURRENT DRAW 1.5 A
POWER CONSUMPTION 4.8
TRANSMIT POWER 300 W (RMS)
Fishfinder features
SPLIT-SCREEN ZOOM YES
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) YES
AUTOGAIN TECHNOLOGY (MINIMISES CLUTTER, MAXIMISES TARGETS) YES
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) YES
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) YES
WATER TEMPERATURE SENSOR INCLUDED YES
DEPTH RANGE SHADING YES
Additional
ADDITIONAL One 4-pin transducer port
Quickdraw Contours
Integrated GPS
Mark Waypoints
Course over Ground (COG)
Current draw @ 12V: 0.40A
