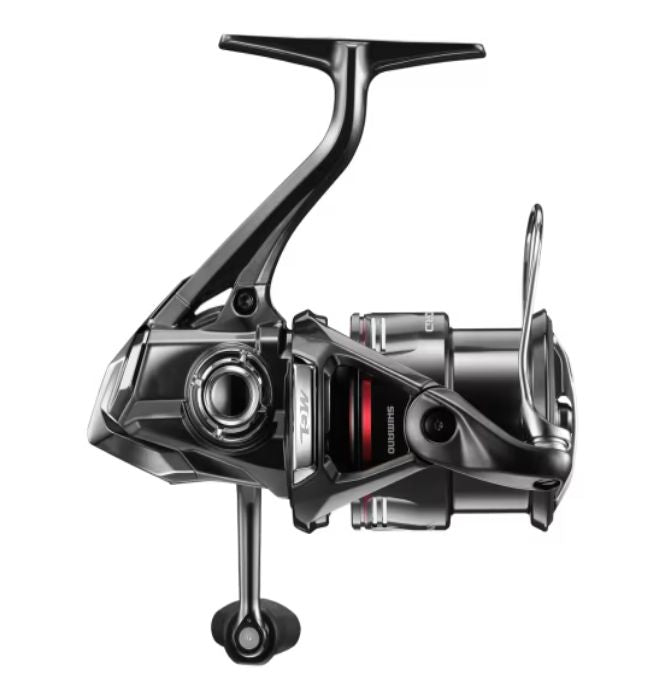

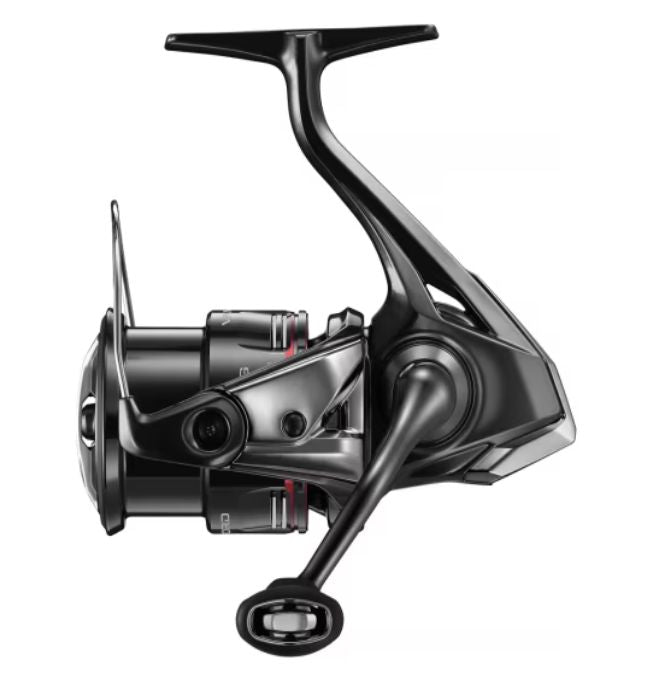

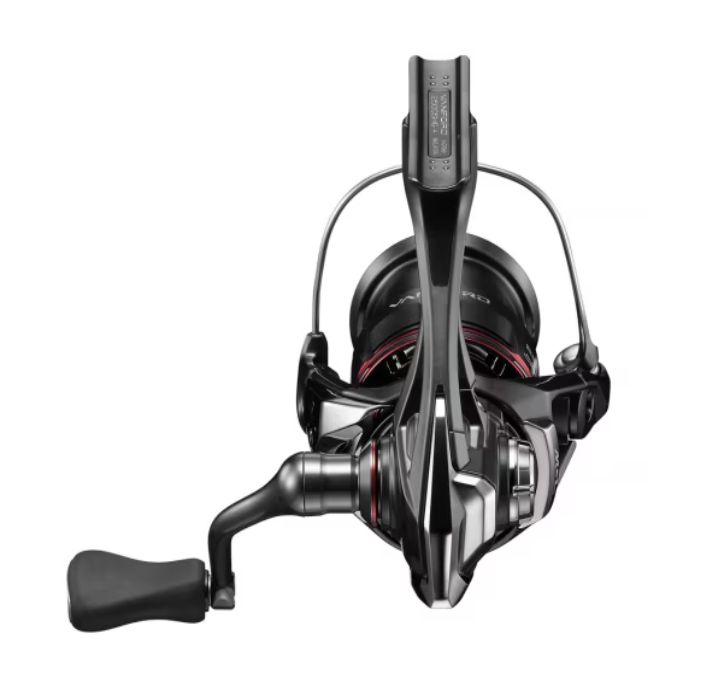

Shimano Vanford 4000
Shimano Vanford 4000 Spinning Reel. The new VANFORD is the go-to reel when it comes down to finesse- and sensitive fishing applications in freshwater and saltwater inshore environments. The unique MGL rotor design contributes greatly to reeling sensitivity and rotation lightness, lending it perfectly for finesse techniques where meticulous lure control is needed.
Click here to view promotional PDF on the new Shimano Vanford reel.
The HAGANE Drive Gear is produced by Shimano’s coldforging technology, without the need for additional machining. This delivers a longlasting smoothness, strength, lightness
and power at the very heart of the reel. Traditional diecast, machined gears are less durable under heavy loads.
Improved Micro Module gearing, making the reeling extreme smooth.
XShip is a combination of features that work together to create much greater efficiency. By positioning the pinion gear close to the centre line of the large diameter drive gear, more power is transferred from the handle to the rotor. The pinion gear is also supported by two Shimano ARB roller bearings. This creates more stability.
Removed ‘clicking’ sound and ‘handle play’ and overall improved smooth reeling.
The new design of the Magnumlite Rotor produces unprecedented light rotation. The rotor profile, which was previously symmetrical, is now asymmetrical. The bail arm mechanism, which was previously situated on the same side as the line roller, has been moved to the opposite side. This improves balance and combined with a lightweight line roller, titan bail and optimum arrangement of rotor thickness, a 14% saving in rotation inertia has been achieved increasing sensitivity to previously unreached levels.
The contact type triplelip structure is introduced to the roller clutch, the pivotal point concerning water resistance. In this structure, the first lip prevents water from entering through the space between the rotor and the body. In addition, the special grease between the second and third lip where it makes contact with the rotor collar located at the upper part of the roller clutch not only resists water from entering but also minimizes friction resistance. Without jeopardizing the ‘silky smooth rotation capacity’, the vital feature of STELLA SW, exceptional water resistance, has been achieved to withstand the crashing and splashing of waves and spray.
G Free Body
G Free Body technology has been developed to shift the reel’s centre of gravity closer to the rod. This has been achieved by moving the worm shaft oscillation mechanism 19mm from the bottom of the reel to the top. By moving the centre of gravity closer to the anglers hand position, the G Free Body helps to reduce fatigue and enhance casting comfort.
Shimano ARC Spool is a patented spool design with an angled spool lip. This design enables the line to leave the spool with less friction and in smaller coils resulting in longer more
accurate casts. ARC spools are proven to reduce backlash and wind knots when using braid.

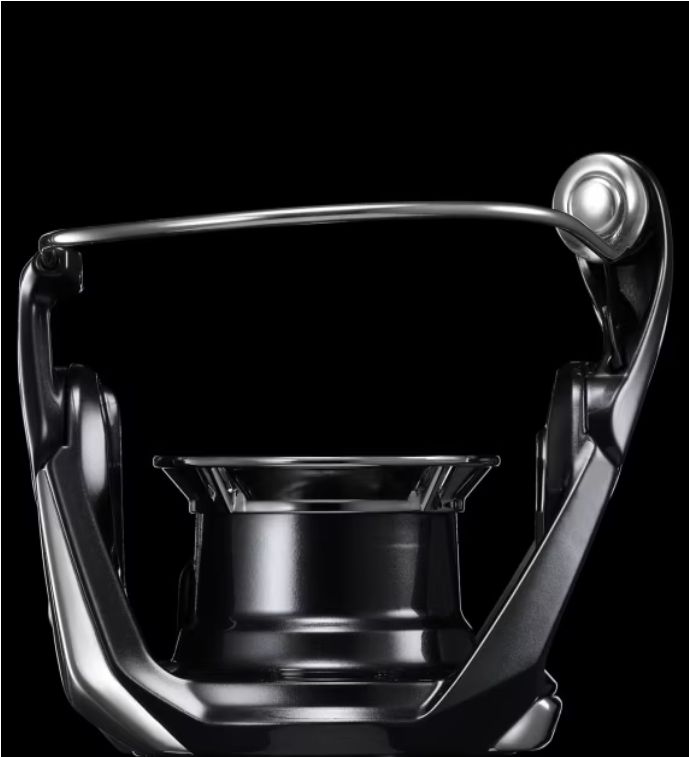

Long Stroke Spool
The long stroke spool has longer stroke compared to conventional spool designs. This longer stroke specification results in greater casting distance.
CI4+ is an advanced version of the original CI4. This highly technical material is 2.5 times stiffer than CI4 and is used on many highend Shimano reels to increase weight savings. Use of CI4+ for the body and rotor also delivers remarkable stiffness for better reel efficiency.
Shimano S ARB
Shimano S ARB bearings are high corrosion resistant ARB ball bearings with an extra shield for improved protection against sand, salt or dust.
|180/0.30 - 130/0.35 m/mm
