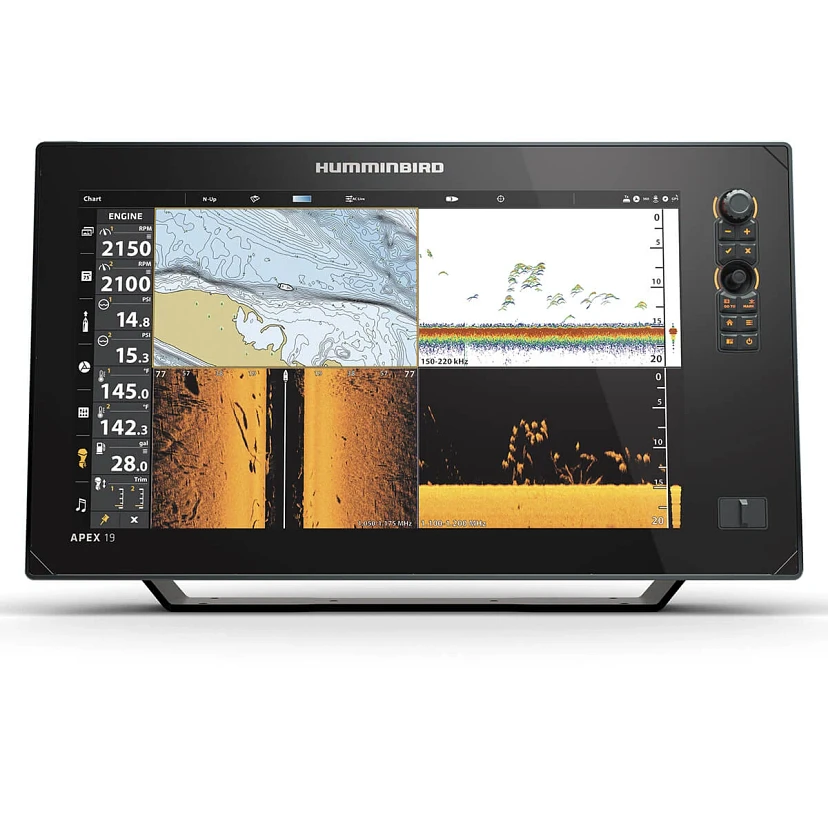

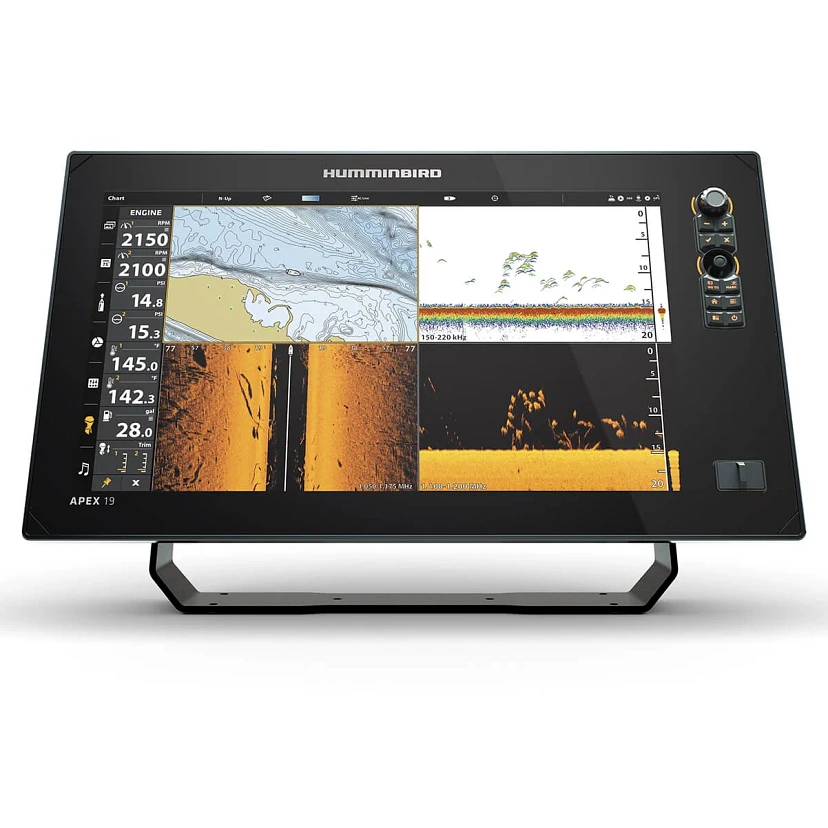

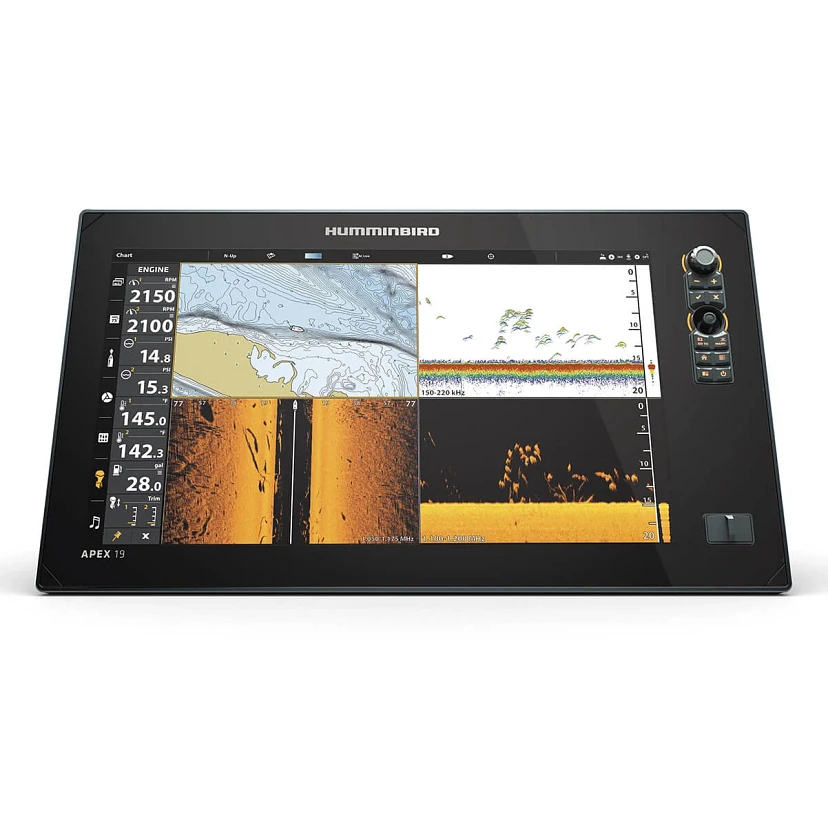

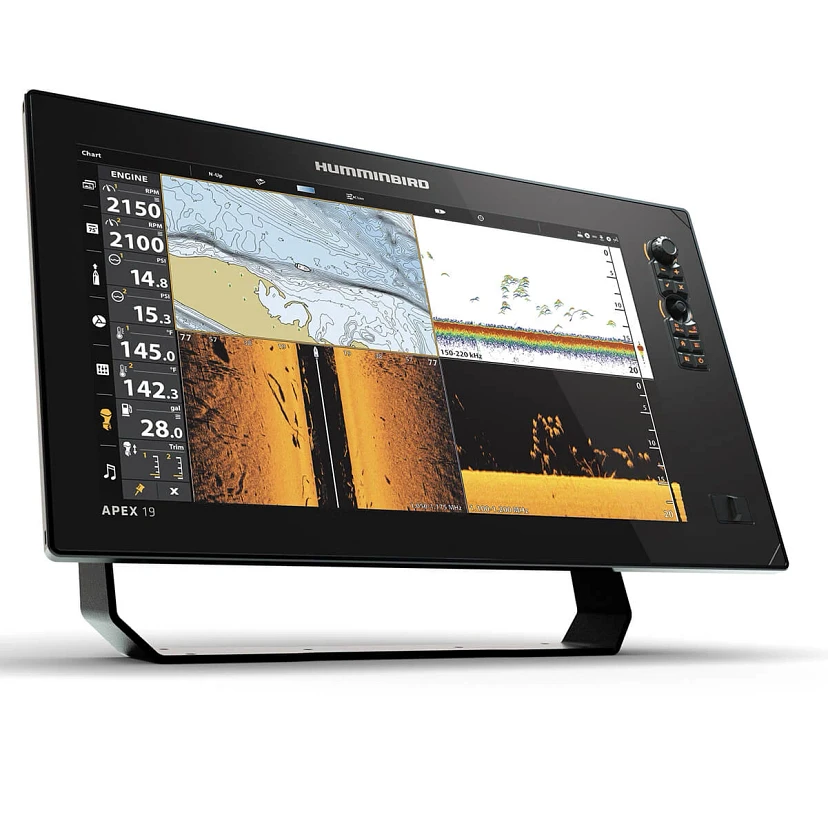

APEX 19 MEGA SI + CHARTPLOTTER

The APEX 19 MEGA SI+ CHARTPLOTTER boasts unmatched sonar imaging and a top-of-the-line multi-function display for anglers. With advanced features like MEGA Imaging+ technology, Dual Spectrum CHIRP sonar, and a dedicated sonar...
Артикул: 411240-1
€7,295.00
€7,295.00

The APEX 19 MEGA SI+ CHARTPLOTTER boasts unmatched sonar imaging and a top-of-the-line multi-function display for anglers. With advanced features like MEGA Imaging+ technology, Dual Spectrum CHIRP sonar, and a dedicated sonar channel for 2D CHIRP transducers up to 2kW, APEX 19 MEGA SI+ CHARTPLOTTER provides clear and detailed views of fish and structures. The 18.5" Full-HD touchscreen is customizable and offers access to a variety of network options such as NMEA 2000®, HDMI In/Out, WiFi, and Bluetooth®. For even more impressive capabilities, you can add the One-Boat Network™ to integrate Humminbird GPS charts, Minn Kota® boat control, and wireless Cannon® Optimum™ downrigger control. Upgrade your fishing experience with the innovative APEX Series MFD.

The APEX 19 MEGA SI + CHARTPLOTTER boasts a 1920H x 1080V Full-HD display, perfect for showcasing sonar and chart images with incredible detail. You have the option of using the touchscreen or keypad to control the device. The dual-core processor ensures speedy performance for all tasks. Enjoy a customized and intuitive user experience with customizable settings and views.

Top-notch Humminbird Sonar: Features MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar for optimal fish tracking. MEGA Imaging+ shows up to 250 views below and on either side of your boat, while Dual Spectrum CHIRP offers exceptional 2D sonar with precise target separation and fish visibility. Dual Channel CHIRP Sonar: Dual sonar ports allow connection with any Humminbird sonar options, plus a dedicated port for 2D CHIRP transducers up to 2kW. Integrated transducer ID allows quick and easy installation of Airmar® transducers.

GPS, Humminbird Basemap, Enhanced View of Underwater Terrain, Points of Interest, Total Confidence. Identify Buoys, Day Markers, Hazards, Marinas, Contours, and Depth Markers.

Create real-time maps of your fishing spots with patented Humminbird® LakeMaster® features. Includes 8 hours of recording time and is compatible with AutoChart Zero Line SD cards. Seamlessly integrates with Minn Kota motors and Cannon Optimum downriggers for exclusive boat control and fish-catching features with the One-Boat Network.

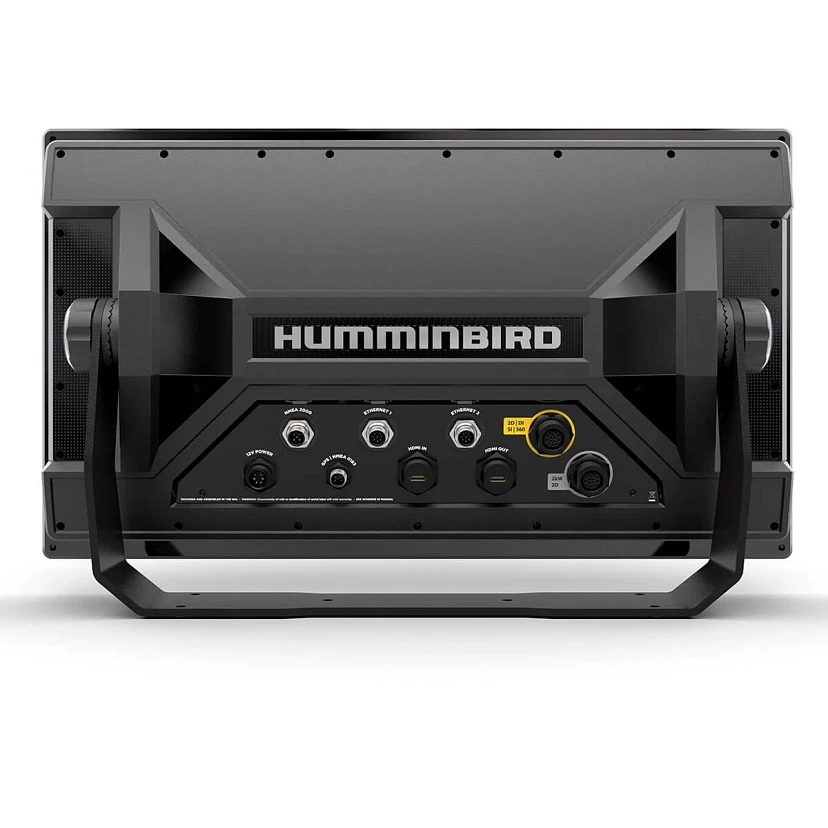

Powerful fishing system with dual Ethernet ports on APEX chart plotters. Easily network products without an external hub. HDMI is compatible with multiple input/output options.

Control your Humminbird screen wirelessly with Bluetooth to Talon and Raptor anchors and Cannon Optimum downriggers. Get software updates from the FishSmart App and see phone notifications on your display. Use NMEA 2000 networking for more information on boat performance, weather, and water conditions. Compatible with CZone® Contact 6, Contact 6 Plus, and digital switching devices.

APEX 19 MEGA SI + CHARTPLOTTER includes control head, transducer, mounting hardware, power cable, and bracket. 2-Year Limited Warranty. Sleek design when installed with the front-mount in-dash kit.

Model APEX 19 MEGA SI+ CHARTPLOTTER
Product Code 411240-1
Series APEX
UPC 0082324054549
Display Size - Diagonal 18.5 in
Display Pixel Matrix 1920H x 1080V
Transducer Included XM 14 HW MSI T
Compatible With Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, HDMI In/Out, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network
Features Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi
Memory Card Slot Dual Micro SD
Sonar-Standard Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
CHIRP - Frequencies Supported Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
Depth-Sonar 3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz)
Depth-Down Imaging 250 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz)
Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 500 ft (MEGA), 250 ft (800 kHz)
Interface Touch Screen
Power Draw 4.4 Amps
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 8000 Watts
Power Output RMS 1000 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 20.27 in W x 12.58 in H x 4.95 in D
Mount-Optional In-Dash Mounting Kit
Mount-Optional Size 20.27 in W x 11.66 in H x 0.51 in D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Receiver Internal
GPS Trackplotting Included
Waypoints, Routes, Tracks/Points 10,000, 50, 50/20,000
360 Imaging Compatibility Yes
MEGA Live Compatibility Yes
Humminbird Basemap Included
LakeMaster Compatibility Yes
CoastMaster Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum+ Compatibility Yes
Platinum Compatibility Yes
Minn Kota i-Pilot Link Compatibility Yes
Minn Kota Talon Shallow Water Anchor Compatibility Yes
Radar Compatibility Yes
5-Port Ethernet Switch Compatibility Yes
AIS Compatibility Optional
Autopilot Compatibility Yes
Heading Sensor GPS Compatibility Yes
NMEA2000 Included
Target Separation 2.5 in
Upgradable Software Yes
View Preset Keys Yes
X-Press Menu System No
Custom Digital Readout Yes
Custom View Selections Yes
Display Colors Grayscale 16-Bit
Display Type Color TFT
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes
HDMI Compatible Yes
Warranty Two-Year Warranty
