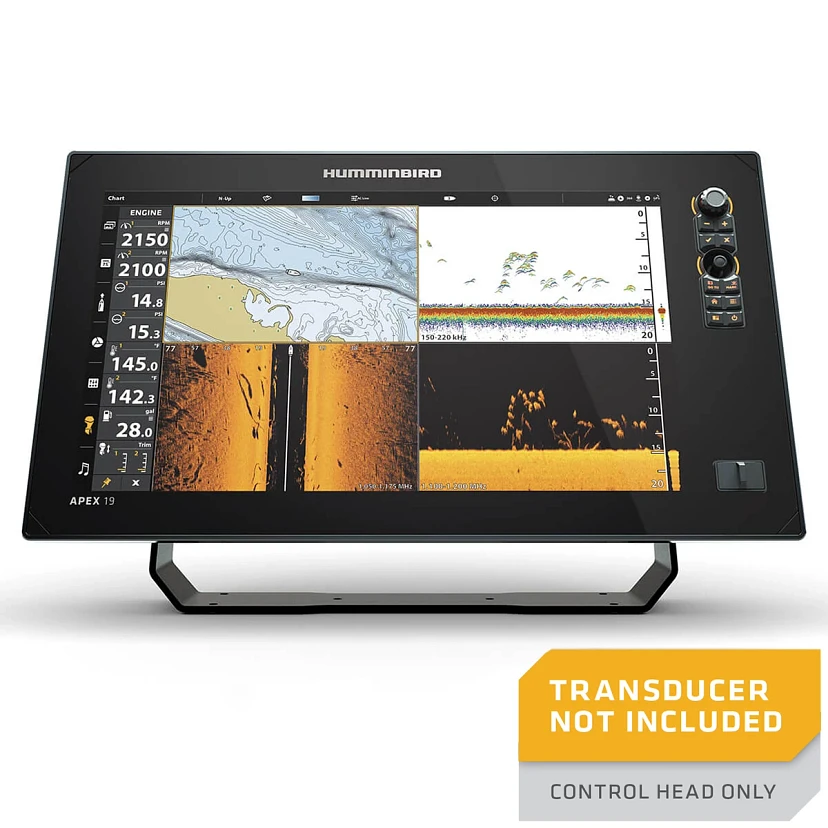

With the APEX 19 MEGA SI+ CHARTPLOTTER CHO, anglers can experience the most advanced sonar imaging and exceptional display quality. APEX 19 MEGA SI+ CHARTPLOTTER CHO cutting-edge device includes industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar capabilities, as well as a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. With an 18.5" Full-HD touchscreen, anglers can easily access and customize information from advanced network options, including NMEA 2000®, HDMI In/Out, WiFi, and Bluetooth®. Enhance your fishing experience with the One-Boat Network™, which integrates Humminbird GPS charts and Minn Kota® boat control, and allows for wireless control of Cannon® Optimum™ downriggers. The APEX Series MFD is the ultimate tool for taking your fishing game to the next level. This CHO (Control Head Only) model is perfect for anglers.
The Control Head Only model does not include a transducer. It's a great choice for connecting to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or sharing sonar data from an existing Humminbird Ethernet network. APEX features a full-HD display with a 1920H x 1080V resolution, providing incredible detail in sonar and chart images. Control everything with the touchscreen or keypad.
Customizable interface and powerful processor for a personalized fishing experience. Industry-leading sonar with MEGA Imaging+ and Dual Spectrum CHIRP ensures excellent target separation and clarity up to 250'.
Dual Channel CHIRP Sonar: Connect with any Humminbird sonar options using 2 ports, and use a dedicated port for 2D CHIRP transducers up to 2kW. Integrated transducer ID for easy installation of Airmar® transducers. Internal GPS with an enhanced base map for confident navigation and fishing. Identify buoys, markers, hazards, marinas, and more.
Get premium charts from Humminbird for a complete view of the underwater world. Use LakeMaster® and CoastMaster™ products or compatible Navionics® charts. Create real-time maps with AutoChart Live, featuring eight (8) hours of built-in recording and compatibility with AutoChart Zero Line SD cards.
Easily connect and network multiple fishing products with APEX chart plotters. Seamlessly integrate and communicate with Minn Kota motors and Cannon Optimum downriggers for exclusive boat control and enhanced fishing capabilities. Unlock the full potential of your fishing experience with the One-Boat Network.
APEX 19 MEGA SI + CHARTPLOTTER CHO: HDMI In/Out ports for multiple views and Bluetooth for control. Add a camera or display options and update the software through the FishSmart App. The screen also displays phone notifications.
Equipped with NMEA 2000 networking for additional information on boat performance, weather, and water conditions. Also compatible with CZone® Contact 6, 6 Plus, and digital switching devices. Includes control head, screen cover, power cable, and gimbal mounting bracket. 2-Year Limited Warranty included. Low-profile design with front-mount in-dash kit. (The CHO model does not include a transducer, choose your own for optimal rigging.)
Model | APEX 19 MEGA SI+ CHARTPLOTTER CHO |
Product Code | 411240-1CHO |
Series | APEX |
UPC | 0082324055805 |
Display Size - Diagonal | 18.5 in |
Display Pixel Matrix | 1920H x 1080V |
Transducer Included | N/A |
Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, HDMI In/Out, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network |
Features | Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
Memory Card Slot | Dual Micro SD |
Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
Sonar-Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
Depth-Sonar | 3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer) |
CHIRP - Imaging Frequencies Supported | MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz) |
Depth-Down Imaging | 250 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz) |
Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 500 ft (MEGA), 250 ft (800 kHz) |
Interface | Touch Screen |
Power Draw | 4.4 Amps |
Power Input | 10.8-20 VDC |
Power Output Peak-to-Peak | 8000 Watts |
Power Output RMS | 1000 Watts |
Screen Snap Shot | Included |
Sonar Recording | Included |
Mount-Standard | Gimbal |
Mount-Standard Size | 20.27 in W x 12.58 in H x 4.95 in D |
Mount-Optional | In-Dash Mounting Kit |
Mount-Optional Size | 20.27 in W x 11.66 in H x 0.51 in D |
Transducer Mount Location | N/A |
GPS Chartplotting | Included |
GPS Receiver | Internal |
GPS Trackplotting | Included |
Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 |
360 Imaging Compatibility | Yes |
MEGA Live Compatibility | Yes |
Humminbird Basemap | Included |
LakeMaster Compatibility | Yes |
CoastMaster Compatibility | Yes |
Navionics Gold/HotMaps Compatibility | Yes |
Navionics Platinum+ Compatibility | Yes |
Platinum Compatibility | Yes |
Minn Kota i-Pilot Link Compatibility | Yes |
Minn Kota Talon Shallow Water Anchor Compatibility | Yes |
Radar Compatibility | Yes |
5-Port Ethernet Switch Compatibility | Yes |
AIS Compatibility | Optional |
Autopilot Compatibility | Yes |
Heading Sensor GPS Compatibility | Yes |
NMEA2000 | Included |
Target Separation | 2.5 in |
Upgradable Software | Yes |
View Preset Keys | Yes |
X-Press Menu System | No |
Custom Digital Readout | Yes |
Custom View Selections | Yes |
Display Colors Grayscale | 16-Bit |
Display Type | Color TFT |
Speed | Included |
Temperature | Built In |
Temperature Alarm | Yes |
Temperature Graph | Yes |
HDMI Compatible | Yes |
Warranty | Two-Year Warranty |
